Defining parameters

T = 10;                             % Total simulation time [s]
resol = 100;                        % Resolution
TSPAN = 0:T/resol:T;                % Time span [s]

Tire (default)

TireModel = TirePacejka();

Vehicle

System = VehicleSimpleNonlinear();

% Defining vehicle parameters
System.mF0 = 700;
System.mR0 = 600;
System.IT = 10000;
System.lT = 3.5;
System.nF = 2;
System.nR = 2;
System.wT = 2;
System.muy = .8;
System.deltaf = 20*pi/180;
System.Fxf = 0;
System.Fxr = @VelControl;

System.tire = TireModel;
simulator = Simulator(System, TSPAN);
simulator.V0 = 8.333;

Run simulation

simulator.Simulate();

Results

% Retrieving states
XT = simulator.XT;
YT = simulator.YT;
PSI = simulator.PSI;
VEL = simulator.VEL;
ALPHAT = simulator.ALPHAT;
dPSI = simulator.dPSI;

f1 = figure(1);
hold on ; grid on ; box on
plot(TSPAN,XT)
xlabel('time [s]')
ylabel('Distance in the x direction [m]')

f2 = figure(2);
hold on ; grid on ; box on
plot(TSPAN,YT)
xlabel('time [s]')
ylabel('Distance in the y direction [m]')

f3 = figure(3);
hold on ; grid on ; box on
plot(TSPAN,PSI)
xlabel('time [s]')
ylabel('Yaw angle [rad]')

f4 = figure(4);
hold on ; grid on ; box on
plot(TSPAN,VEL)
xlabel('time [s]')
ylabel('Velocity [m/s]')

f5 = figure(5);
hold on ; grid on ; box on
plot(TSPAN,ALPHAT)
xlabel('time [s]')
ylabel('Vehicle slip angle [rad/s]')

f6 = figure(6);
hold on ; grid on ; box on
plot(TSPAN,dPSI)
xlabel('time [s]')
ylabel('Yaw rate [rad/s]')

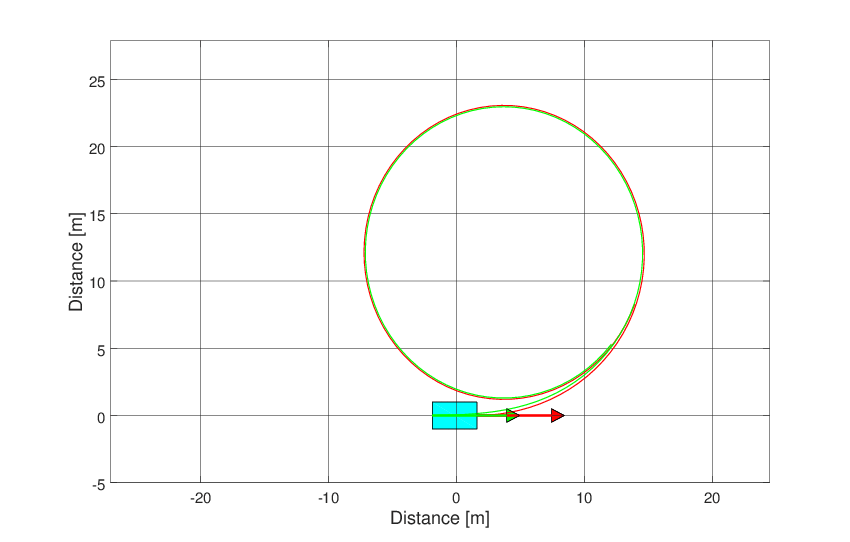

Frame and animation

g = Graphics(simulator);
g.TractorColor = 'c';

g.Frame();

angulo = 0:0.01:2*pi;

[R,XC,YC] = circfit(XT(40:end),YT(40:end));

XX = XC + R*cos(angulo);
YY = YC + R*sin(angulo);

hold on
plot(XX,YY,'k')


g.Animation();

Maneuver radius

disp(num2str(R))
